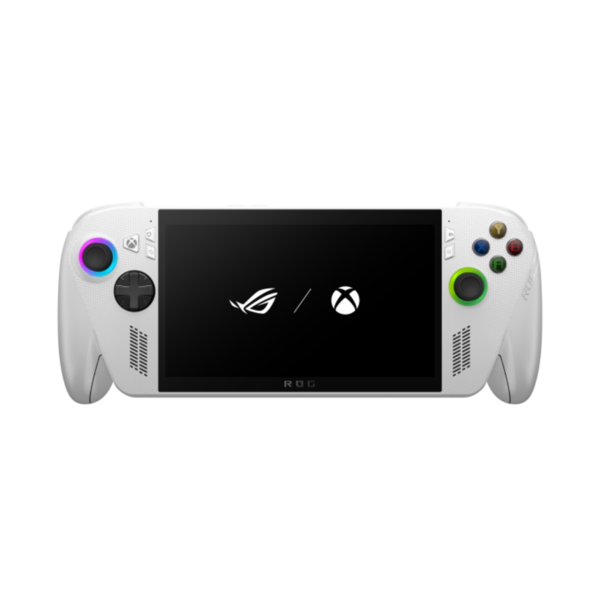

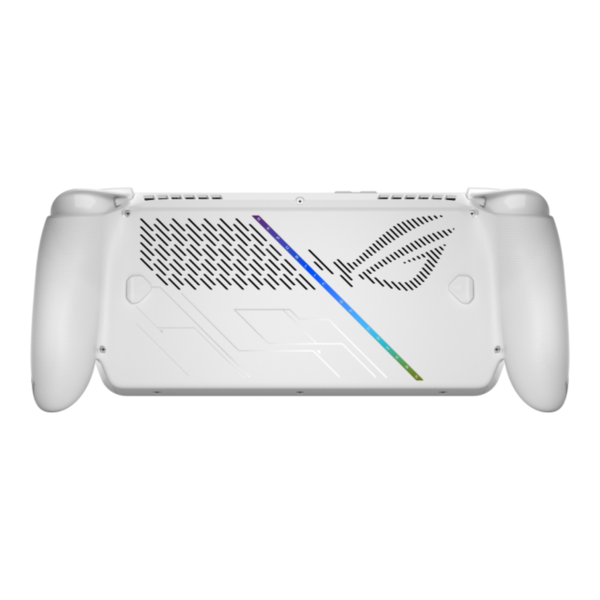

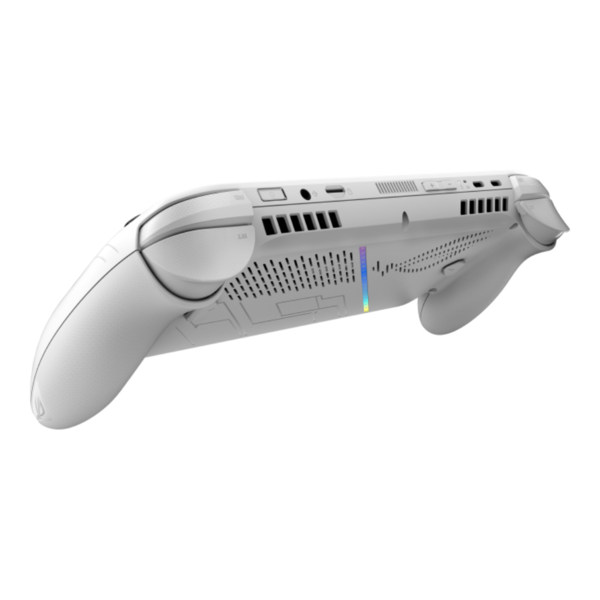

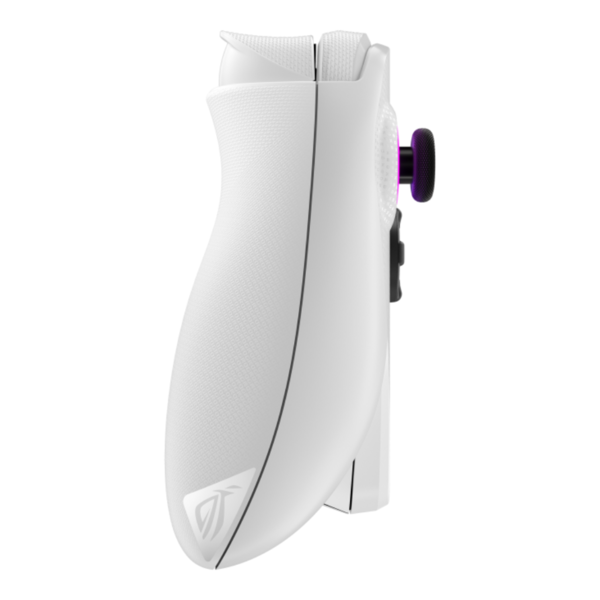

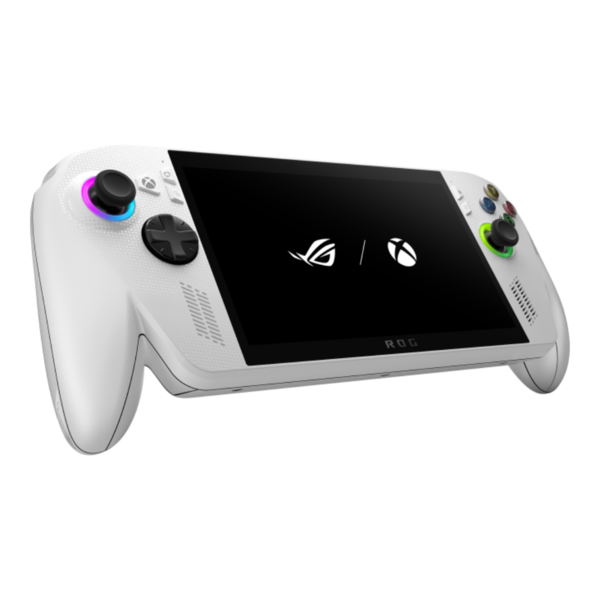

ROG Xbox Ally 2025

VPN: 90NV00G1-M000H0
Model: RC73YA-NH002W

Processor:

• CPU: AMD Ryzen™ Z2 A Processor 2.8GHz (6MB Cache, up to 3.8 GHz, 4 cores, 8 Threads)
• GPU: AMD Radeon™ Graphics

Display:

• 7-inch
• FHD (1920 x 1080) 16:9
• IPS-level
• glossy display
• sRGB: 100%
• Adobe: 75.35%
• Gorilla® Glass DXC
• Gorilla® Glass Victus™
• Touch Screen (10-point multi-touch)
• Refresh Rate: 120Hz
• Brightness: 500 nits
• AMD FreeSync™ Premium (Variable Refresh Rate)

Memory:

• 16GB LPDDR5 on board (6400MT/s dual channel)
• Support dual channel memory

Storage:

• 512GB PCIe® 4.0 NVMe™ M.2 SSD (2280)

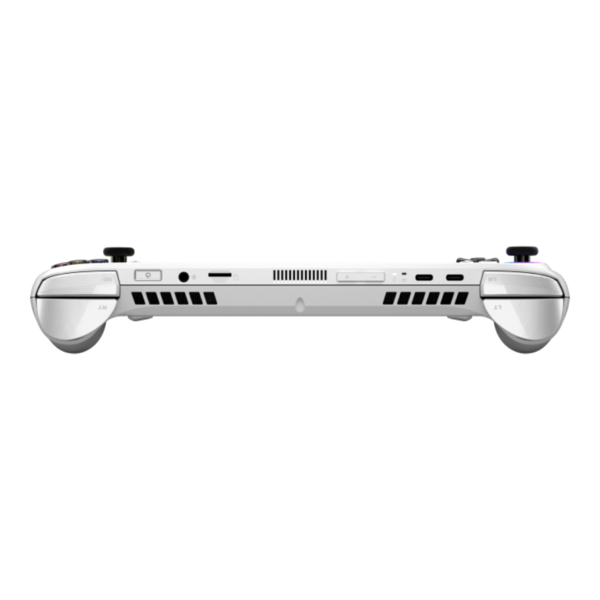

I/O Ports:

• 1x 3.5mm Combo Audio Jack
• 2x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery
• 1x UHS-II microSD card reader (supports SD, SDXC and SDHC)

Control and Input:

• A B X Y buttons
• D-pad
• L & R Hall Effect analog triggers
• L & R bumpers
• View button
• Menu button
• Command Center button
• Armoury Crate button
• 2 x assignable grip buttons
• Thumbsticks: 2 x full-size analog sticks
• Haptics: HD haptics
• Gyro:6-Axis IMU

Audio:

• AI noise-canceling technology
• Hi-Res certification (for headphone)
• Smart Amp Technology
• Dolby Atmos
• Built-in array microphone
• 2-speaker system with Smart Amplifier Technology

Network and Communication:

• Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.2 (*Bluetooth® version may change with OS version different.)

Battery:

• 60WHrs, 4S1P, 4-cell Li-ion

Power Supply:

• TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal

AURA SYNC:

• Yes

Weight:

• 670 g (1.48 lbs)

Dimensions (W x D x H):

• 29.0 x 12.1 x 2.75 ~ 5.09 cm (11.42" x 4.76" x 1.08" ~ 2.00")

Xbox Game Pass:

• Xbox Game Pass Standard_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Security:

• Built-in Fingerprint Sensor
• Microsoft Pluton security processor
